Tus nqi-zoo me me hauv tsev of elevator

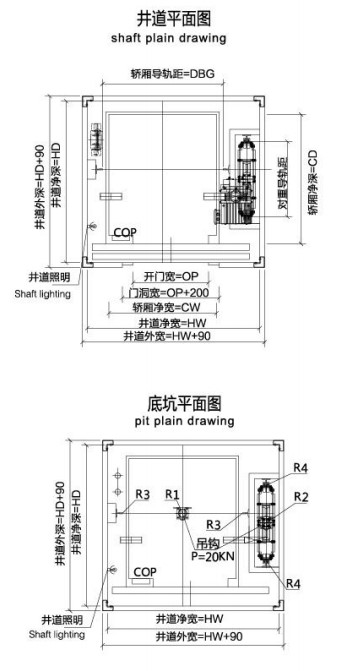

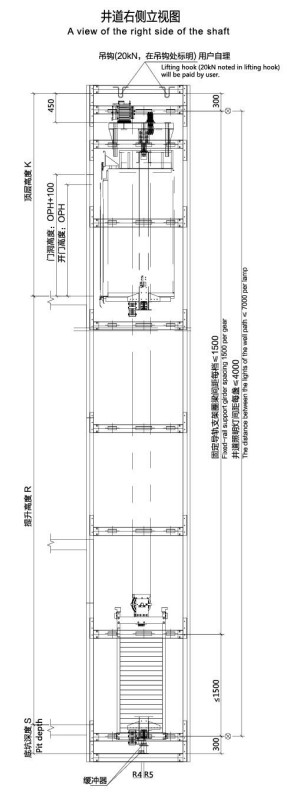

Gantry hom qauv tsev of elevator (Couterweight side placement)
| Load (kg) | 260 | 320 | 400 | |||
| Rov qab ceev (m / s) | 0.4 | 0.4 | 0.4 | |||
| Tsheb loj (CW × CD) | 800 * 1000 hli | 900 * 1100 hli | 1000 * 1200 hli | |||
| Overhead qhov siab (mm) | 2200 | |||||
| Qhib qhov rooj txoj kev | Qhov rooj viav vias | Sab qhib | Center qhib | Sab qhib | Center qhib | Sab qhib |
| Qhov rooj qhib qhov loj (mm) | 800 * 2000 hli | 750 * 2000 hli | 650 * 2000 hli | 800 * 2000 hli | 700 * 2000 hli | 800 * 2000 hli |
| Ncej loj (mm) | 1400 * 1100 hli | 1400 * 1300 hli | 1500 * 1350 hli | 1500 * 1400 hli | 1600 * 1450 hli | 1600 * 1500 hli |
| Qhov tob tob (mm) | ≥2800 | |||||
| Qhov tob (mm) | ≥500 | |||||
Rucksack hom tsev of elevator (Couterweight postposition)
| Load (kg) | 260 | 320 | 400 | |||
| Rov qab ceev (m / s) | 0.4 | 0.4 | 0.4 | |||
| Tsheb loj (CW × CD) | 1000 * 800 hli | 1100 * 900 hli | 1200 * 1000 hli | |||
| Overhead qhov siab (mm) | 2200 | |||||
| Qhib qhov rooj txoj kev | Qhov rooj viav vias | Sab qhib | Qhov rooj viav vias | Sab qhib | Qhov rooj viav vias | Sab qhib |
| Qhov rooj qhib qhov loj (mm) | 800 * 2000 hli | 650 * 2000 hli | 800 * 2000 hli | 700 * 2000 hli | 800 * 2000 hli | 800 * 2000 hli |
| Ncej loj (mm) | 1150 * 1300 hli | 1150 * 1500 hli | 1250 * 1400 hli | 1250 * 1600 hli | 1350 * 1500 hli | 1350 * 1700 hli |
| Qhov tob tob (mm) | ≥2600 | |||||
| Qhov tob (mm) | ≥300 | |||||
Tianhongyi villa of elevator txais kev siv thev naus laus zis los ua kom ruaj khov, ntse thiab ua haujlwm ntawm lub elevator nyob rau hauv cov nqe lus ntawm traction system thiab tswj qhov system, kom koj tuaj yeem txaus siab rau kev nplij siab. Tsawg suab nrov, yooj yim rau nruab, cia koj muaj ib puag ncig zoo nkauj hauv tsev. Txuag tus nqi tsim thiab kev tsim kho ntawm chav computer, kom koj lub tsev tuaj yeem siv tau tag nrho. Me me hneev taw, nyab xeeb thiab txhim khu kev qha. Tianhongyi Villa of Elevator yog qhov zoo tshaj plaws ua haujlwm thiab ua haujlwm of the elevator rau duplex thiab ntau-storey tsev nyob. Nws tseem yog txoj kev zoo tshaj plaws ntawm kev thauj mus los rau cov neeg laus, cov neeg tsis taus thiab cov neeg mob.
1. Hydraulic tsav: hydraulic lub tsev elevator yog ib txwm siv lub tsev elevator tsim. Vim yog cov yam ntxwv xws li roj av paug rau ib puag ncig, kev ua haujlwm ntau dhau ntawm lub suab nrov, thiab siv hluav taws xob ntau, lawv tsis ua raws li kev tsim kho lub tswv yim ntawm kev tiv thaiv ib puag ncig thiab kev txuag hluav taws xob ntawm kev lag luam elevator niaj hnub thiab tau raug txiav tawm los ntawm tib neeg.Feem ntau yog siv rau cov khoom thauj khoom thauj lossis cov elevator tshwj xeeb nrog cov tonnage loj.
2. Traction tsav: vim muaj kev tiv thaiv ib puag ncig, txuag hluav taws xob thiab lub tsev txuag chaw, lub tshuab chav tsev-tsawg traction villa of elevator tau dav siv los ntawm cov neeg. Traction tsav tau muab faib ua qauv gantry, lub hnab ev khoom, cov qauv tsav muaj zog thiab lwm yam. Nyob rau tib lub sijhawm, cov qauv gantry ntawm lub tsheb sib txuas ua ke ntawm lub elevator ncua kev kawm ntawv, lub elevator qhov chaw ntawm lub ntiajteb txawj nqus, thiab cov lus qhia kev tsheb ciav hlau hauv ib qho, thiab ob txheej tsheb hauv qab nruab nrog lub tshuab nqus dej ua rau lub elevator ua haujlwm zoo heev. Kev txuag hluav taws xob thiab kev tiv thaiv ib puag ncig ua rau cov elevator series no yog cov khoom lag luam tseem ceeb hauv lub lag luam elevator tam sim no, suav txog li ob feem peb ntawm kev ua lag luam, thiab yog thawj qhov kev xaiv rau villa elevator.
3. Screw tsav: Cov ntsia hlau elevator txais cov txiv ntseej thiab cov ntsia hlau tsav qauv, uas tseem yog lub tshuab ua haujlwm tsis muaj elevator. Vim hais tias tag nrho cov qauv ntawm lub elevator yog heev compact, nws muaj ib tug siab ncej qhov chaw siv tus nqi thiab muaj peev xwm paub lub tsheb-wallless qauv. Lub tsheb tsis muaj cov cuab yeej damping, thiab kev nplij siab thiab kev ruaj ntseg ntawm lub elevator ua haujlwm yog qis dua li ntawm traction villa of elevator. Tam sim no, kev lag luam sib koom ntawm cov khoom lag luam no kuj tsawg, thiab nws tuaj yeem siv rau hauv villas thiab duplexes.
