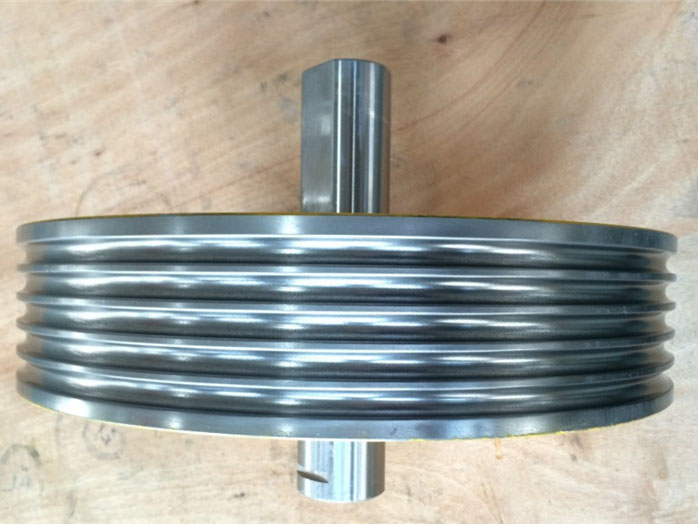

Deflector Sheave hauv of elevator
| Khoom npe | Of Elevator Deflector Sheave |
| Txoj kab uas hla | Φ200 - Φ640 |
| Number of Slots | 2-10 |
| hlua | 6.5-16 |
| Qhov Pitch | 12-25 |
1.Txhim qhov kev ncua deb ntawm lub tsheb thiab lub counterweight thiab hloov cov kev taw qhia ntawm kev txav ntawm txoj hlua hlau.
2.Lub elevator phau ntawv qhia log muaj cov qauv rub, thiab nws lub luag haujlwm yog kom txuag tau qhov kev siv zog ntawm lub rubey thaiv.
3.Muab MC nylon Deflector Sheave thiab Cam khwb cia hlau Deflector Sheave.
4.Peb muab qhov koj xav tau, nws yog ib qho kev xyiv fab rau kev ntseeg siab! Kuv yuav tsis poob koj txoj kev ntseeg!
| Qauv | Txoj kab uas hla (D) | hlua |
| TSI-200-01 | 200 | 3 * Φ6.5-12 |
| TSI-200-02 | 200 | 4 * Φ6.5-13 |
| TSI-200-03 | 200 | 4 * Φ6.5-15 |
| TSI-240-01 | 240 | 3 * Φ8-12 |
| TSI-240-02 | 240 | 4 * Φ8-13 |
| TSI-240-03 | 240 | 4 * Φ8-13 |
| TSI-250-01 | 250 | 3 * Φ8-13 |
| TSI-320-01 | 320 | 3 * Φ8-12 |
| TSI-320-02 | 320 | 4 * Φ8-12 |
| TSI-320-03 | 320 | 5 * Φ8-12 |
| TSI-320-04 | 320 | 6 * Φ10-15 |
| TSI-320-05 | 320 | 7 * Φ10-15 |
| TSI-320-06 | 320 | 8 * Φ8-12 |
| TSI-360-01 | 360 | 6 * Φ10-16 |
| TSI-360-02 | 360 | 7 * Φ10-16 |
| TSI-400-01 | 400 | 4 * Φ10-16 |
| TSI-400-02 | 400 | 5 * Φ10-16 |
| TSI-400-03 | 400 | 6 * Φ10-16 |
| TSI-400-04 | 400 | 7 * Φ10-16 |
| TSI-400-05 | 400 | 8 * Φ10-16 |
| TSI-440-01 | 440 | 5 * Φ10-16 |
| TSI-480-01 | 480 | 5 * Φ12-18 |
| TSI-480-02 | 480 | 6 * Φ12-18 |
| TSI-520-01 | 520 | 5 * Φ10-16 |
| TSI-520-02 | 520 | 5 * Φ13-19 |
| TSI-520-03 | 520 | 5 * Φ13-24 |
| TSI-520-04 | 520 | 6 * Φ13-20 |
| TSI-520-05 | 520 | 6 * Φ13-24 |
| TSI-640-01 | 640 | 5 * Φ16-25 |
| TSI-640-02 | 640 | 6 * Φ16-25 |
| TSI-640-03 | 640 | 7 * Φ16-25 |
| TSI-640-04 | 640 | 8 * Φ16-25 |

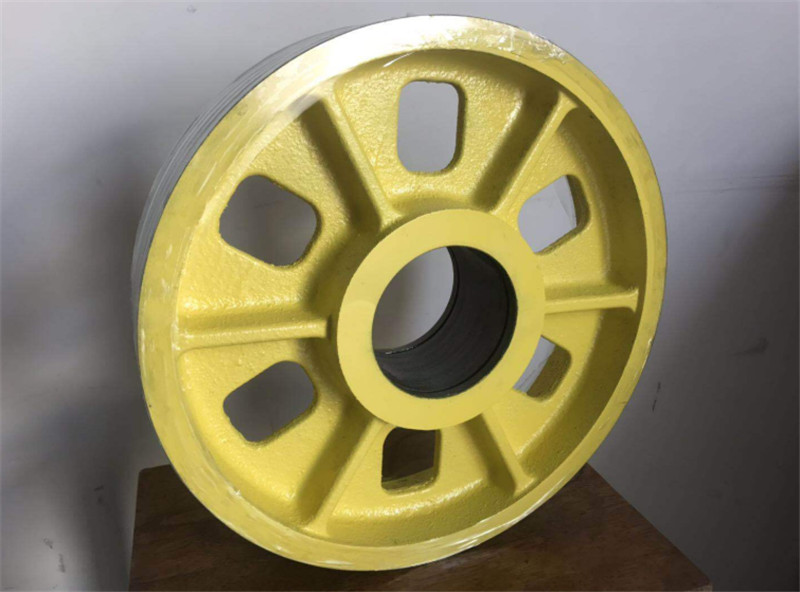

Txoj hlua rub yog ib qho tseem ceeb hauv kev ua haujlwm of the elevator, thiab nws yog ib hom kev txav mus los tau siv hauv of the elevator. Qhov txav tau txav tau feem ntau yog teem rau sab sauv ntawm lub tsheb ncej thiab cov ncej txee. Muaj ob yam khoom: cam khwb cia hlau log thiab nylon log. Raws li lub tshuab chav tsev elevator sheaves, nws muab faib ua tshuab chav qhia sheaves, tsheb sab saum toj sheaves thiab counterweight sheaves; tshuab chav tsev-tsawg elevator sheaves muab faib rau hauv lub tsheb hauv qab sheaves thiab counterweight sheaves. Qhov sib txawv traction ratios tuaj yeem tsim los ntawm kev rub txoj hlua nyob ib ncig ntawm lub nraub qaum ris raws li xav tau. Of elevator sheaves feem ntau yog tsim los ntawm lub cev log, bearings, shafts, tuav rings, bushings, thiab lwm yam, thiab tuaj yeem siv nrog U-bolts.

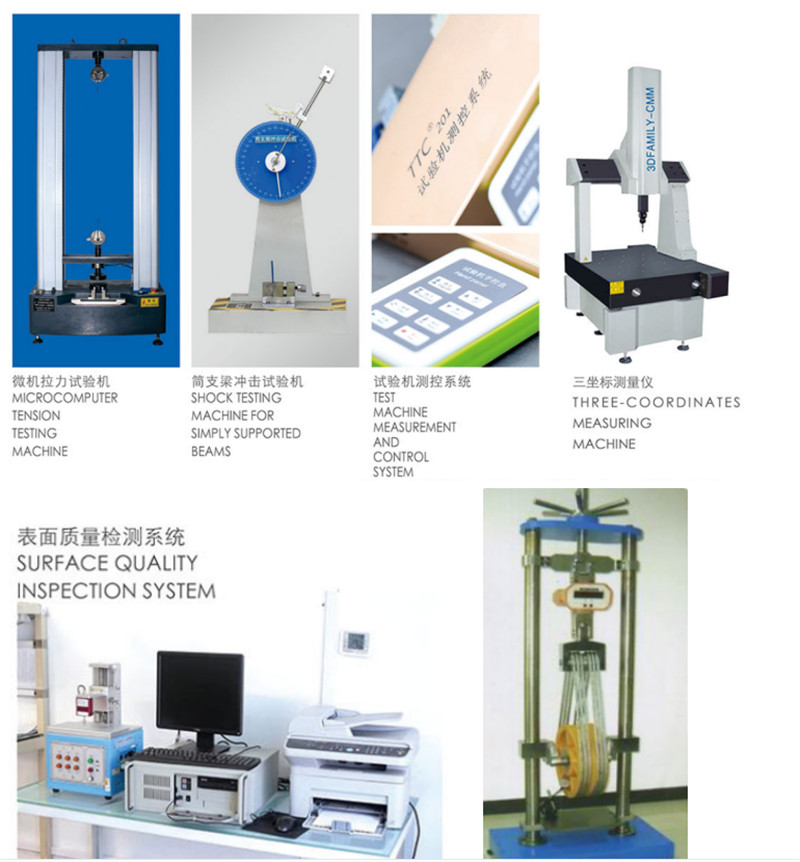

Txhawm rau kom muaj kev nyab xeeb ntawm kev siv lub elevator log, peb tau dhau qhov kev suav nruj thiab kev coj ua los ntawm kev tsim qauv mus rau qhov tseeb kev ntsuas siab thiab kev kuaj kev laus kom ntseeg tau tias cov neeg siv khoom tuaj yeem siv cov khoom zoo.
1. Ntsuab thiab ib puag ncig tiv thaiv, zoo nkauj tsos;
2. Tus nqi qis thiab kev ua haujlwm zoo los tiv thaiv kev laus;
3. Lub teeb yuag, lub sijhawm me me ntawm inertia, thiab yooj yim sib dhos
4. Tsis tshua muaj suab nrov thiab zoo poob siab kev ua haujlwm;
5. Creep kuj thiab zoo resilience;
6. High-speed centrifugal casting ntawm high-molecular qauv nylon khoom muaj cov qauv zoo, cov qauv zoo, zoo dynamic tshuav thiab tswj tau yooj yim.
1. Hnav-tiv taus thiab ua haujlwm ntev;
2. Kev ruaj ntseg zoo dua thiab kev siv dav dua;
3. Lub zog siab, tsis yooj yim rau dhia lossis plam;
4. Qhov saum npoo tsis yooj yim puas los ntawm steel hlau hlua;
5. Ua kom qhov chaw sib cuag ntawm txoj hlua rub thiab ua kom muaj kev sib txhuam;
6. Ua kom muaj kev ntseeg siab ntawm kev sib kis.
