High Quality of Elevator Steel Hlau Ropes

Lus piav qhia luv luv:

Cov neeg caij tsheb me me feem ntau siv rau lub elevator hlau hlua. Nyob rau hauv cov cheeb tsam kev lag luam, lub elevator hlau hlua specifications feem ntau yog 8 * 19S + FC-8mm, 8 * 19S + FC-10mm.

Xa email rau peb

Product Detail

Khoom cim npe

Khoom Parameters

1.Qhov kev qhia tshwj xeeb no yog tsim rau kev ceev limiter hlau hlua, qis ceev, tsis tshua muaj elevator

2.Peb kuj tuaj yeem kho raws li koj xav tau.

Nominal hlua txoj kab uas hla	6 * 19S + PP	Yam tsawg kawg nkaus Loading
	Kwv yees qhov hnyav	Dual Tensile, Mpa		Ib leeg Tensile, Mpa
	Kwv yees qhov hnyav	1370/1770 ib	1570/1770 ib	1570 ib	1770 ib
mm	Kg / 100 m	kN	kN	kN	kN
6	12.9 ib	17.8 ib	19.5 Nws	18.7 ib	21
8	23	31.7 ib	34.6 ib	33.2 ib	37.4 ib

1.Natural fiber core (NFC): Haum rau hlau hlua ntawm traction tshuab nrog ntsuas ceev ≤ 2.0m / s

2.Lub tsev qhov siab≤80M

Nominal hlua txoj kab uas hla	8 * 19S + NFC	Yam tsawg kawg nkaus Loading
	Kwv yees qhov hnyav	Dual Tensile, Mpa		Ib leeg Tensile, Mpa
	Kwv yees qhov hnyav	1370/1770 ib	1570/1770 ib	1570 ib	1770 ib
mm	Kg / 100 m	kN	kN	kN	kN
8	21.8 ib	28.1 ib	30.8 ib	29.4 ib	33.2 ib
9	27.5 ib	35.6 ib	38.9 ib	37.3 ib	42
10	34	44	48.1 ib	46	51.9 ua
11	41.1	53.2 ib	58.1 ib	55.7 ib	62.8 ib
12	49	63.3 ib	69.2 ib	66.2 ib	74.7 ib
13	57.5 ib	74.3 ib	81.2 ib	77.7 ib	87.6 ib
14	66.6 ib	86.1 ib	94.2 ib	90.2 ib	102
15	76.5 ib	98.9 ua	108	104	117
16	87	113	123	118	133
18	110	142	156	149	168
19	123	159	173	166	187
20	136	176	192	184	207
22	165	213	233	223	251

1.Rau IWRC, ceev> 4.0 m / s, Lub tsev qhov siab> 100m

2.Rau IWRF, 2.0< speed≤4.0m / s, Lub tsev siab≤100m

Nominal hlua txoj kab uas hla	8 * 19 S		Yam tsawg kawg nkaus Loading
	Kwv yees qhov hnyav		Ib leeg Tensile, Mpa
	Kwv yees qhov hnyav		1570 ib		1620		1770 ib
	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF
mm	Kg / 100 m		kN		kN		/	kN
8	26	25.9 ib	35.8 ib	35.2 ib	36.9 ib	35.2 ib	40.3	39.6 ib
9	33	32.8 ib	45.3 ib	44.5 ib	46.7 ib	45.9 ua	51	50.2 ib
10	40.7 ib	40.5 ib	55.9 ua	55	57.7 ib	56.7 ib	63	62
11	49.2 ib	49	67.6 ib	66.5 ib	69.8 ua	68.6 ib	76.2 ib	75
12	58.6 ib	58.3 ib	80.5 ua	79.1 ib	83	81.6 ib	90.7 ua	89.2 ib
13	68.8 ib	68.4 ib	94.5 ua	92.9 ua	97.5 ua	98.5 ua	106	105
14	79.8 ua	79.4 ib	110	108	113	111	124	121
15	91.6 ib	91.1 ib	126	124	130	128	142	139
16	104	104	143	141	148	145	161	159
18	132	131	181	178	187	184	204	201
19	147	146	202	198	208	205	227	224
20	163	162	224	220	231	227	252	248
22	197	196	271	266	279	274	305	300

Cov ntaub ntawv khoom

Cov neeg caij tsheb me me feem ntau siv rau lub elevator hlau hlua. Nyob rau hauv cov cheeb tsam kev lag luam, lub elevator hlau hlua specifications feem ntau yog 8 * 19S + FC-8mm, 8 * 19S + FC-10mm. Cov khw malls siv cov hlua loj me me ntawm 12mm, 13mm, thiab load of elevator steel hlua specifications ntawm 12mm, 13mm, thiab 16mm inch.

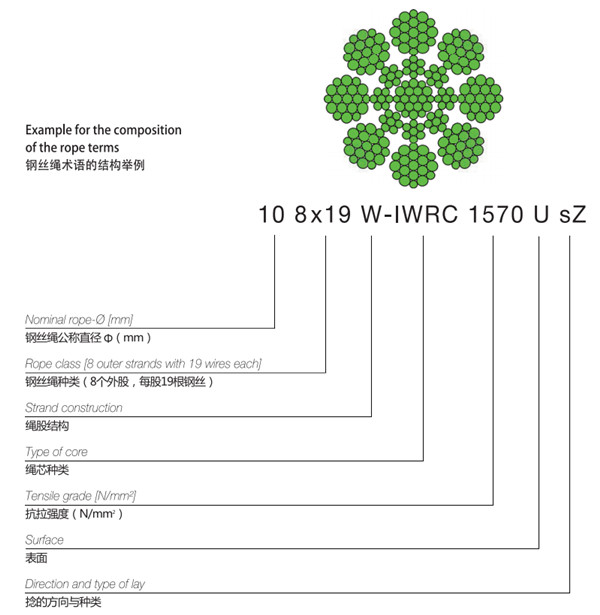

Hauv kev txiav txim steel hlau hlua, koj tau thov kom muab cov ntaub ntawv tiav rau peb raws li tau teev tseg hauv qab no:

1. Lub hom phiaj: Yuav siv txoj hlua twg;

2. Loj: Txoj kab uas hla ntawm txoj hlua hauv milimeter lossis nti;

3. Kev tsim kho: Cov xov tooj ntawm cov hlua, cov xov tooj ntawm ib qho strand thiab hom kev tsim kho;

4. Hom Core: Fiber tub ntxhais (FC), ywj siab hlau hlua core (IWRC) lossis ywj siab hlau strand core (IWSC);

5. Lay: Txoj cai tsis tu ncua, sab laug tsis tu ncua, Txoj cai lang nteg, sab laug lang nteg,

6. Khoom siv: Bright (ungalvanized), galvanized lossis staninless steel;

7. Qib ntawm Hlau: Tensile zog ntawm cov xov hlau;

8. Lubrication: Txawm tias lubrication yog xav tau los yog tsis thiab yuav tsum tau lubricant;

9. Ntev: ntev ntawm cov hlua hlau;

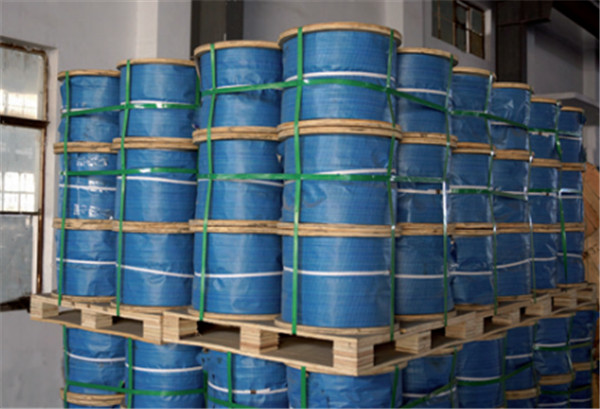

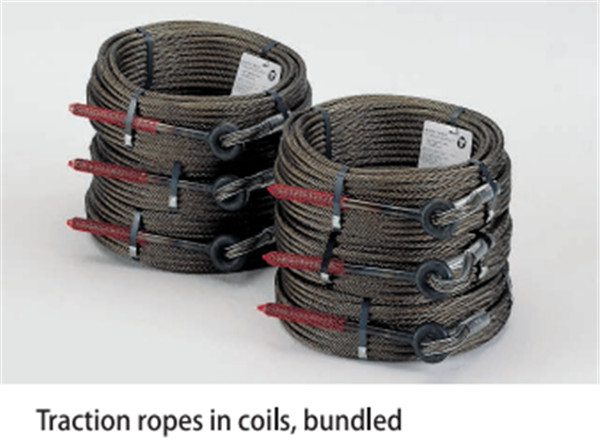

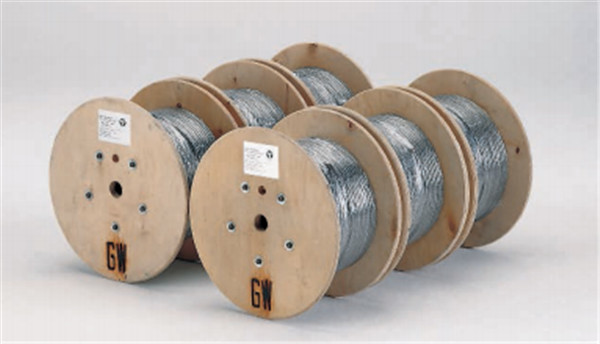

10. Ntim: Hauv coils qhwv nrog cov ntawv roj thiab daim ntaub hessian lossis ntawm cov ntoo reels;

11. Quantity: Los ntawm cov coils los yog reels los ntawm qhov ntev lossis qhov hnyav;

12. Lus Cim: Cov cim kev xa khoom thiab lwm yam kev xav tau tshwj xeeb.

Thaum lub sijhawm ua haujlwm ntev, cov roj lubricating ntawm cov hlua hlau yuav maj mam txo. Yog li ntawd, nws yog ib qho tsim nyog rau cov hlua hlau kom tsis tu ncua lubricated, uas tuaj yeem txuas lub neej kev pab cuam ntawm cov hlua hlau, thiab txo qis hnav thiab tiv thaiv xeb los ntawm relubricating. Piv nrog rau tag nrho cov hlua khi hlua khi, lub neej kev pabcuam ntawm cov hlua hlau qhuav tuaj yeem txo tau txog li 80%! Lub relubrication ntawm cov hlua hlau plays lub luag haujlwm tseem ceeb heev. Peb feem ntau xaiv T86 lubricating roj, uas yog cov kua nyias nyias uas yooj yim nkag mus rau hauv cov hlua hlau. Nws tsuas yog xav tau txhuam los yog lub thawv nqa tau 1 liters los tsuag nws. Qhov chaw ntawm kev siv yuav tsum yog qhov chaw uas cov hlua hlau kov lub traction sheave los yog coj lub log, kom cov hlua hlau lubricant tuaj yeem ntws mus rau hauv cov hlua hlau yooj yim dua.
