Kev ruaj ntseg Magnet Synchronous Gearless Traction Tshuab THY-TM-K200

Permanent Magnet Synchronous Gearless Traction Tshuab THY-TM-K200 Featured duab

Lus piav qhia luv luv:

Qhov hluav taws xob: 380V

Qhov Loj: 2: 1 / 4: 1

Nres: DC 110V 2 × 1.3A

Luj: 350kg

Max.Static Load: 4000kg

Xa email rau peb

Product Detail

Khoom cim npe

Khoom Parameters

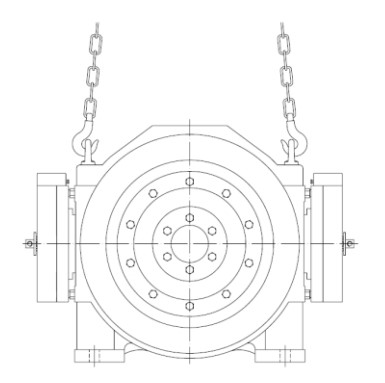

Lifting daim duab

Qhov hluav taws xob	380v ua
Roping	2: 1/4: 1
Nres	DC110V 2 × 1.3A
Qhov hnyav	350kg ua
Max.Static Load	4000 kg

Peb Qhov Zoo

1. Kev xa khoom sai

2.Qhov kev hloov pauv tsuas yog qhov pib, qhov kev pabcuam yeej tsis xaus

3. Hom: Traction Tshuab THY-TM-K200

4.Peb tuaj yeem muab cov tshuab synchronous thiab asynchronous traction ntawm TORINDRIVE, MONADRIVE, MONTANARI, FAXI, SYLG thiab lwm hom.

5. Kev ntseeg yog kev zoo siab! Kuv yuav tsis poob koj txoj kev ntseeg!

Kev tsim thiab tsim khoom ntawm THY-TM-K200 ruaj khov hlau nplaum synchronous gearless of elevator traction tshuab ua raws li "GB7588-2003-Kev Nyab Xeeb Code rau of elevator Manufacturing thiab Installation", "EN81-1: 1998-Txoj Cai Kev Nyab Xeeb rau Kev Tsim Kho thiab Kev Txhim Kho of Elevator", "GB20-7-Txoj cai muaj feem xyuam hauv Kev Tsim Kho thiab Kev Txhim Kho of Elevator" Lub tshuab traction yog tsim los ntawm cov hlau nplaum ruaj khov synchronous lub cev muaj zog, lub log traction thiab braking system Siv cov khoom siv hlau nplaum ruaj khov thiab cov qauv tshwj xeeb ntawm lub cev muaj zog, nws muaj cov yam ntxwv ntawm kev ceev ceev thiab loj torque, thiab lub nres nres yog ib qho kev sib txuas ntawm lub log thiab lub log txuas ncaj qha Nrog lub micro hloov los saib xyuas qhov xwm txheej thaum lub nres nres, qhov nquag qhib kev sib cuag ntawm lub micro hloov yog tsim rau of elevator nrog lub tshuab chav thiab of elevator yam tsis muaj tshuab chav tsev traction ratio yog 2: 1 thiab 4: 1, qhov ntsuas load yog 630KG ~ 1150KG, qhov ntsuas ceev yog 0.5 / 0.5 ~ 0.5mm. 450mm Txhua lub tshuab traction hla nruj kev soj ntsuam ua ntej tawm hauv lub Hoobkas kom paub meej qhov zoo thiab kev ua haujlwm ntawm cov khoom.

1.Traction tshuab installation

• Ua ntej txhim kho lub tshuab traction, koj yuav tsum xyuas kom meej lub zog ntawm lub installation ncej thiab lub hauv paus.

• Thaum hoisting lub tshuab traction, thov siv lub nplhaib hoisting lossis qhov ntawm lub tshuab traction lub cev.

• Thaum nqa, nco ntsoov nqa ntsug, thiab lub kaum sab xis ntawm ob lub hooks yuav tsum tsawg dua 90 °.

• Lub dav hlau installation ntawm lub tshuab traction yuav tsum yog theem, thiab yuav tsum muaj kev ntsuas kev vibration txo.

• Cov hlua hlau hlua khi thiab cov khoom sib thooj yuav tsum dhau los ntawm lub dav hlau nruab nrab ntawm lub traction sheave vertically.

• Xyuas kom meej tias qhov saum npoo ntawm lub thav duab uas lub tshuab traction tau teeb tsa yog tiaj tus thiab qhov siab tshaj plaws qhov sib txawv yog 0.1 hli.

• Tes log ntawm chav tshuab yog nyob rau hauv qab sab laug ntawm sab nraum qab ntawm lub ntsiab chav tsev. Thov xyuam xim rau qhov cuam tshuam ntawm tus ncej.

• Qhov loj ntawm lub bolts rau kho lub tshuab traction yog nruab nrog lub qhov taw, thiab cov bolts nrog lub zog ntawm 8.8 yog siv.

•Feem ntau lub tshuab traction yog nruab nrog ib tug tiv thaiv dhia pas nrig thiab ib tug tiv thaiv npog, thov rov pib dua tom qab txhim kho cov hlua hlau.

2.Traction tshuab debugging

• Kev ua haujlwm ntawm lub tshuab traction yuav tsum ua los ntawm cov kws tshaj lij thiab cov kws tshaj lij kev cob qhia.

• Lub tshuab traction tej zaum yuav vibrate thaum debugging. Thov kho lub tshuab traction txhim khu kev qha ua ntej debugging.

• Txhawm rau ua kom lub tshuab traction ua haujlwm zoo, thov teeb tsa lub inverter raws li cov ntaub ntawv ntawm daim ntawv teev npe thiab ua nws tus kheej kawm.

• Yog tias siv txoj kev kawm ntawm tus kheej, txoj hlua hlau yuav tsum raug txiav thiab nres nres thiab ua haujlwm li qub.

•Encoder keeb kwm kev kawm tus kheej tsawg kawg yog peb zaug, thiab qhov sib txawv ntawm tus nqi kawm tus kheej yuav tsum tsis pub dhau 5 degrees.

3.Traction tshuab khiav

• Thov khiav mus rau pem hauv ntej thiab thim rov qab ntawm qhov ceev ceev (kev soj ntsuam ceev) ua ntej kom paub meej tias lub kaw lus puas ua haujlwm li qub.

• Thov khiav ntawm qhov sib txawv ntawm qhov nrawm rau lub sijhawm qee lub sijhawm thaum saib xyuas seb qhov kev khiav haujlwm tam sim no puas nyob rau hauv qhov tsim nyog.

• Thaum khiav ntawm qhov ntsuas ntawm lub elevator ceev, lub tsheb kev nplij siab hloov kho tuaj yeem raug teeb tsa raws li qhov sib thooj ntawm lub inverter.
