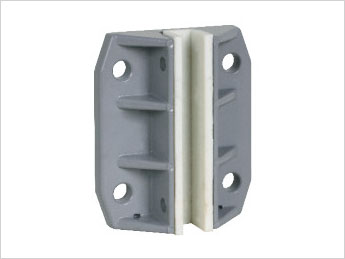

Sliding Guide Nkawm khau rau cov neeg caij elevator THY-GS-310G

Sliding Guide Nkawm khau rau cov neeg caij elevators THY-GS-310G Featured duab

Lus piav qhia luv luv:

Xa email rau peb

Product Detail

Khoom cim npe

Khoom Parameters

Rated Ceev: ≤1.75m / s

Match The Guide Rail: 10,16.4

Cov ntaub ntawv khoom

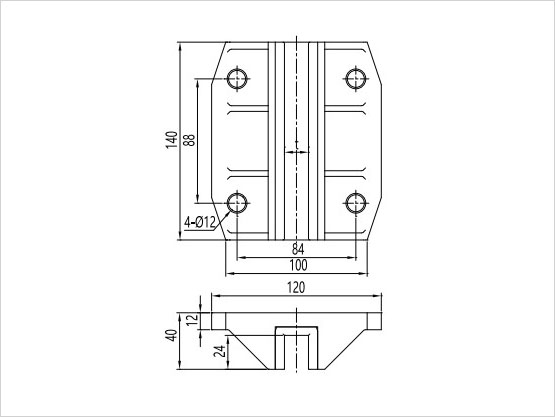

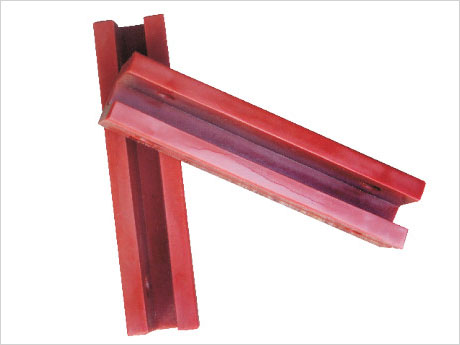

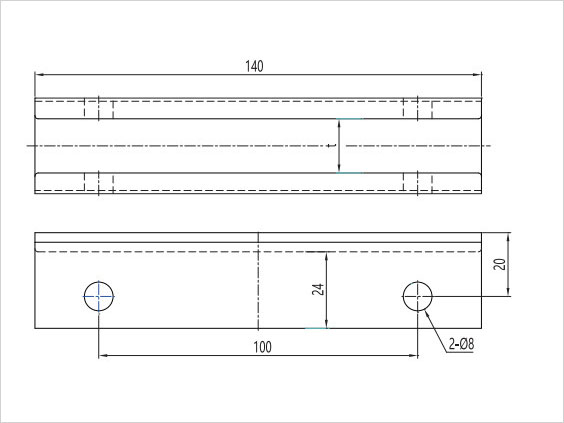

THY-GS-310G phau ntawv qhia khau yog cov cuab yeej qhia uas tuaj yeem xaub ncaj qha ntawm of the elevator guide rail thiab tsheb lossis counterweight. Nws tuaj yeem txhim kho lub tsheb lossis qhov hnyav ntawm cov lus qhia kev tsheb ciav hlau kom nws tsuas tuaj yeem swb nce thiab nqis los tiv thaiv lub tsheb lossis qhov hnyav los ntawm Skew lossis viav vias thaum ua haujlwm. Lub khob roj tuaj yeem ntsia tau rau sab saud ntawm cov khau qhia kom txo tau qhov kev sib txhuam ntawm cov khau hauv ob sab phlu thiab cov kev taw qhia rail. Thaum siv cov khau taw qhia, ib lub elevator yog nruab nrog 8 daim, thiab lub tsheb counterweight yog 4 daim txhua, thiab lawv tau nruab rau saum thiab hauv qab ntawm lub tsheb lossis lub txee. Cov khau qhia yog tsim los ntawm cov khau hauv ob sab phlu, lub hauv paus, thiab lub cev khau. Lub rooj zaum khau yog nruab nrog hauv qab reinforcing tav los xyuas kom meej lub zog ntawm kev siv. Feem ntau siv tau rau elevator nrog elevator ceev ≤ 1.75m / s. Matching rail dav 10mm thiab 16mm. Qhov ruaj khov zawv zawg qhia khau feem ntau yuav tsum tau siv nrog lub khob roj thiab yog siv rau lub txee qhov hnyav.

Daim ntawv qhia khau installation yuav tsum ua raws li cov cai hauv qab no:

1. Tom qab cov khau khiab sab sauv thiab sab qis tau muab tso rau hauv qhov chaw, lawv yuav tsum nyob rau ntawm tib txoj kab ntsug tsis muaj skewing lossis twisting. Xyuas kom meej tias cov khau sab sauv thiab sab qis yog nyob rau hauv ib txoj kab ntawm qhov nruab nrab ntawm lub puab tsaig ruaj ntseg.

2. Tom qab cov khau qhia tau teeb tsa, sab laug thiab sab xis qhov sib txawv ntawm cov kev taw qhia rail thiab cov khau hauv ob sab phlu yuav tsum sib npaug ntawm 0.5 ~ 2mm, thiab qhov sib txawv ntawm cov khau hauv ob sab phlu thiab sab saum toj ntawm daim ntawv qhia rail yuav tsum yog 0.5 ~ 2mm.
